How is ADKT architected?
ADKT architecture
Existing Tools
AK sources
There are a large variety of existing tools frequently used in the software development process. Many of these tools can integrate custom plugins to create new add-ons programmatically in order to handle the architecture knowledge related to design decisions.
AK recovery tools
Also, in the existing tools there are different approaches to analyze existing tools and documents to extract the knowledge about design decision making.

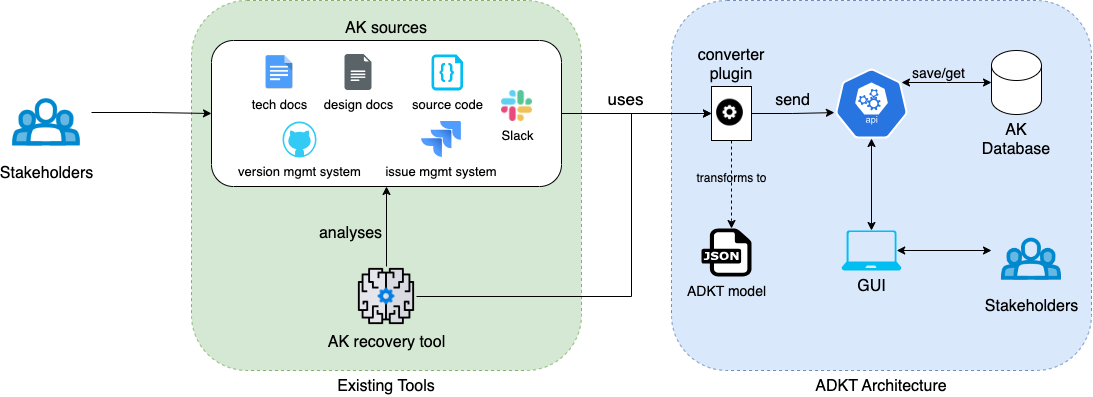

ADKT Architecture
This is the proposed architecture to handle this kind of data and to query/save it in a proper way.
Converter plugin
Represents each integration created on the different AK sources, this plugins must structure an fulfill the data using the ADKT model to be send to the API
GUI (Graphic User Interface)
A Graphic User Interface that works as a client of the API. The idea of this component is to allow each stakeholder query and save information about design decisions.
API
Is the server where the Converter plugins have to send the converted design decisions to be saved. Also, the GUI requests the data and makes updates to the traceability between the design decisions.
AK Database
Is the server where the design decisions data is persisted and consulted.
